Product introduction

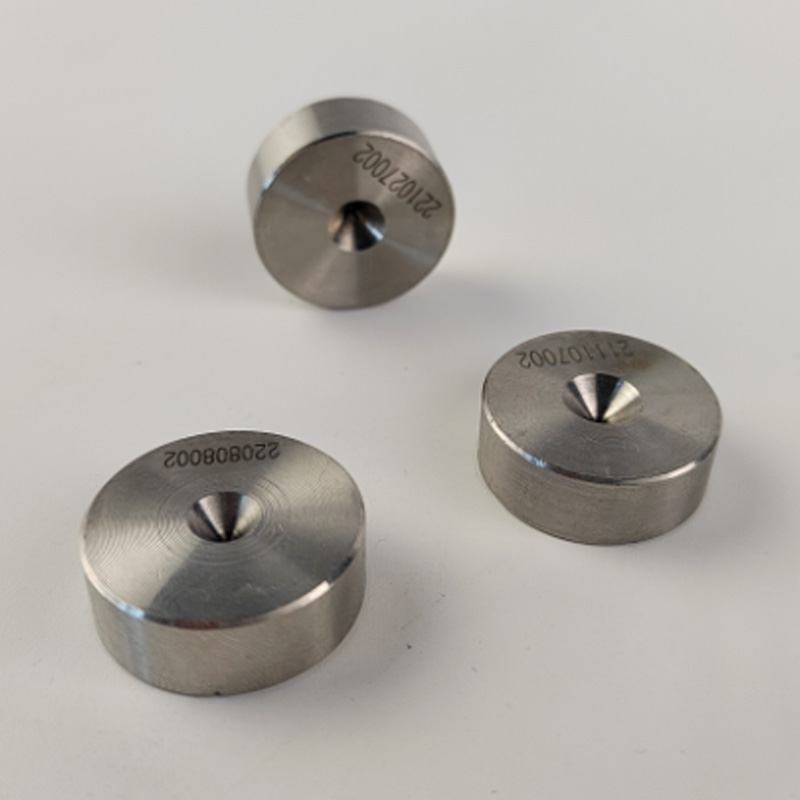

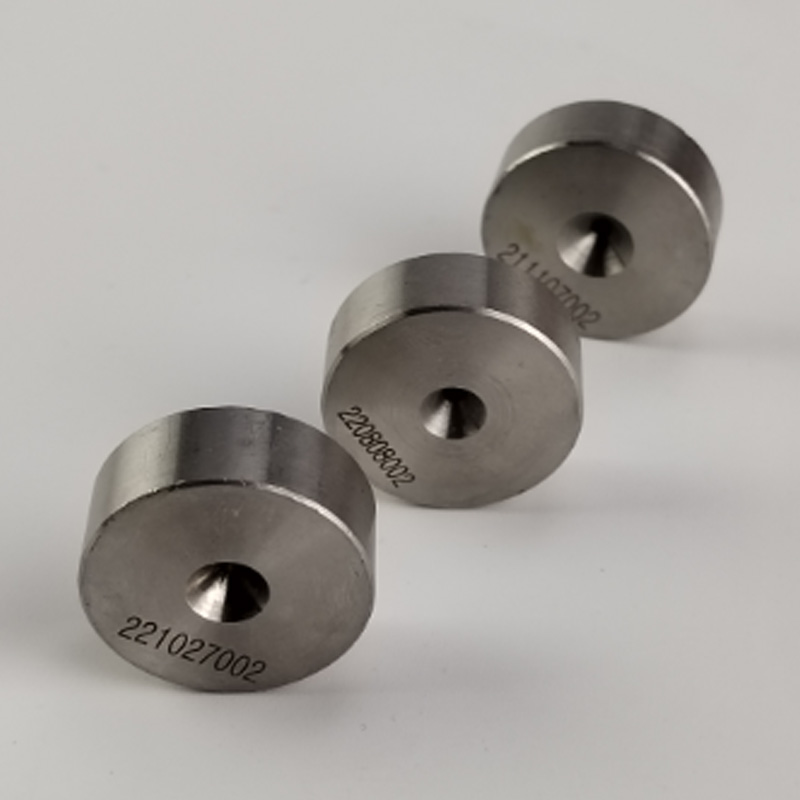

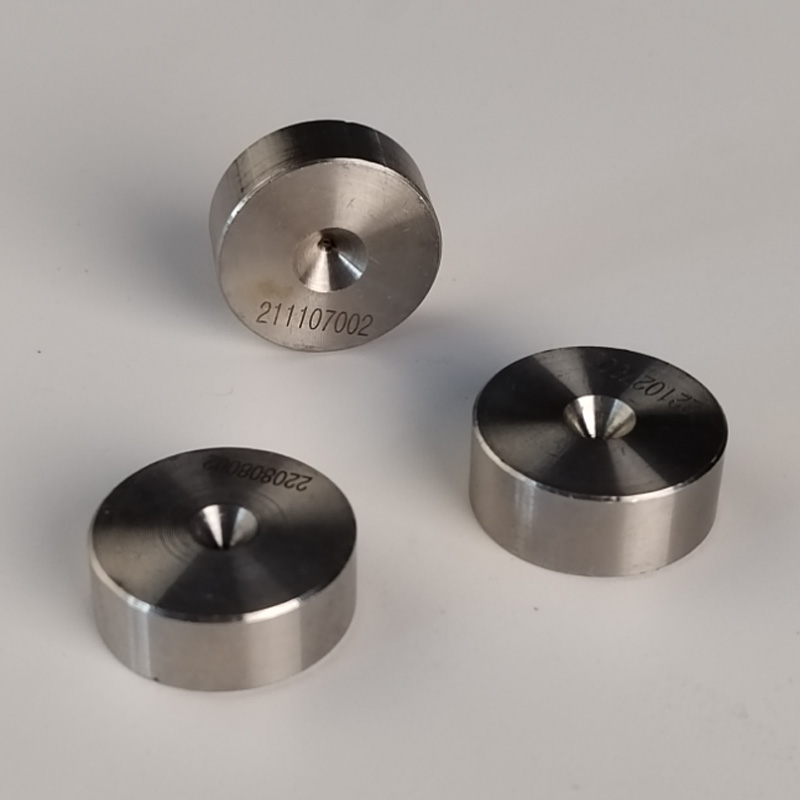

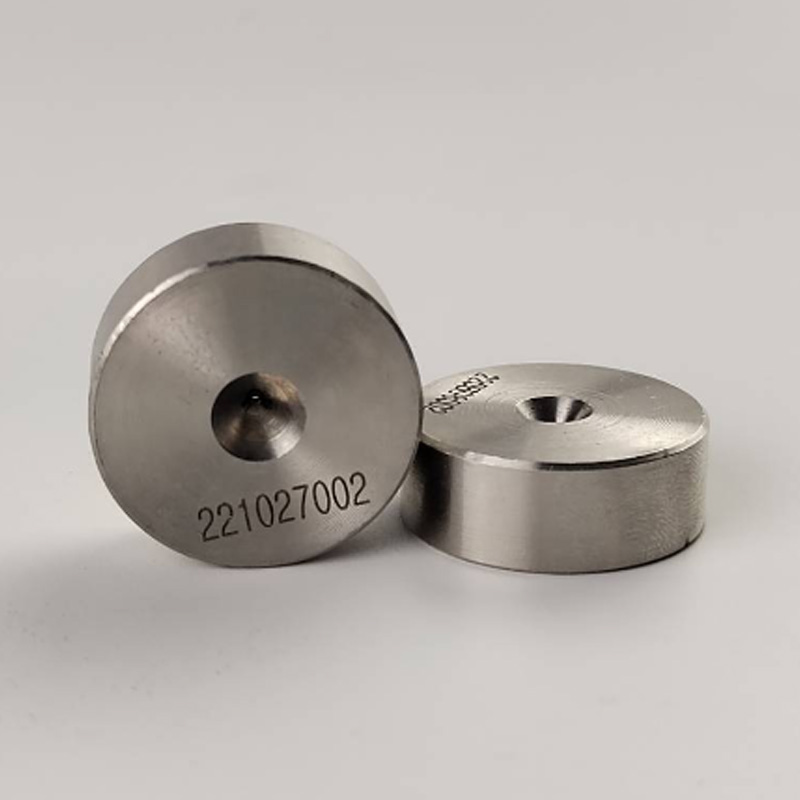

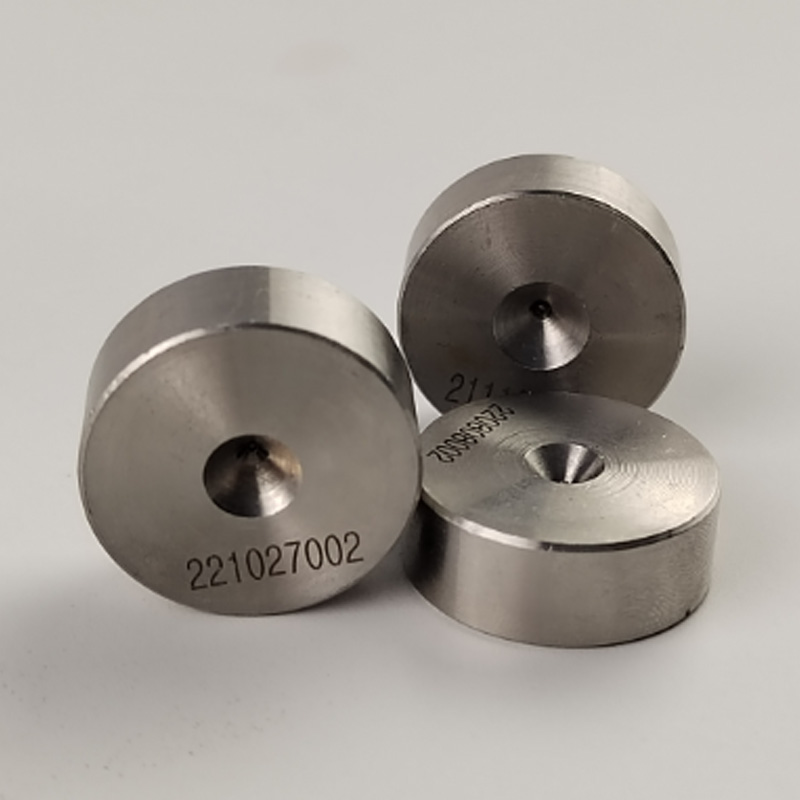

Wire drawing die is a kind of die for drawing metal wire or bar, with high hardness, good wear resistance, and simple production. It consists of two parts: a fixed mold base and a removable mold head. The die head usually has multiple sharp cutting edges for cutting metal wire to the desired length and diameter. Wire drawing die is widely used in drawing bar, wire, wire, pipe and other linear hard to process objects.
Physical Properties
| Type | Basic dimension | |||
| D | H | d | h | |
| 11- | 8 | 6 | 0.4-1.0 | 0.3-0.6 |
| 13 | 10 | 0.4-2.3 | 0.3-1.4 | |
| 16 | 14 | 0.4-1.0 | 0.3-0.7 | |
| 16 | 14 | 1.3-2.8 | 1.0-1.4 | |
| 22 | 18 | 1.8-4.7 | 1.2-2.4 | |
| 22 | 20 | 5.2-5.7 | 2.6-2.8 | |
| Type | Basic dimension | |||
| D | H | d | h | |
| 01- | 6 | 4 | 0.2 | 0.8 |
| 8 | 6 | 0.2 | 1 | |
Ingredient Content
| Type | Basic dimension | |||
| D | H | d | h | |
| 10- | 6 | 4 | 0.4-0.8 | 0.8-1.2 |
| 8 | 6 | 0.4-0.8 | 1.0-1.5 | |
Product parameters
| Classification | Original brand | Grade | January prices | January prices | Cobalt Content (Co%) |
Hardness (HRA) |
Density (g/cm3) |
TRS (N/mm2) |
Grain Size (μm) |
Application Recommended |
| Grade for Wire drawing die |
YG6AX | HM12AX | ￥367.00 | $58.25 | 6 | 93.3 | 14.8 | 2600 | Submicron | Applicable to the hard high-speed drawing of steel wire, copper wire with a diameter of less than 3mm, and non. Ferrous metal pipe or rods with high requirements of surface finish. |
| YG6X | HMM12X | ￥361.00 | $57.30 | 6 | 92.3 | 14.9 | 2800 | Fine | Applicable to steel wire and non-ferrous metal wire with a diameter of less than 6mm under the condition of less tensile stress. | |
| YG7 | HM14 | ￥352.00 | $55.87 | 7 | 90.5 | 14.85 | 2800 | Medium | Applicable to steel, non-ferrous metal wire or rods with a diameter of less than 20mm, and also pipes with a diameter of less than 10mm under the condition of biggish tensile stress. | |
| DK25UF | HU20 | ￥372.00 | $59.05 | 10 | 91.8 | 14.4 | 3500 | Submicron | Applicable to the hard high-speed drawing of steel wire, copper wire with a diameter of less than 10mm, and non-ferrous metal pipe or rods with high requirements of surface finish. |
