Carbide 30 Degree Spiral Rod
Inquiry
Product introduction

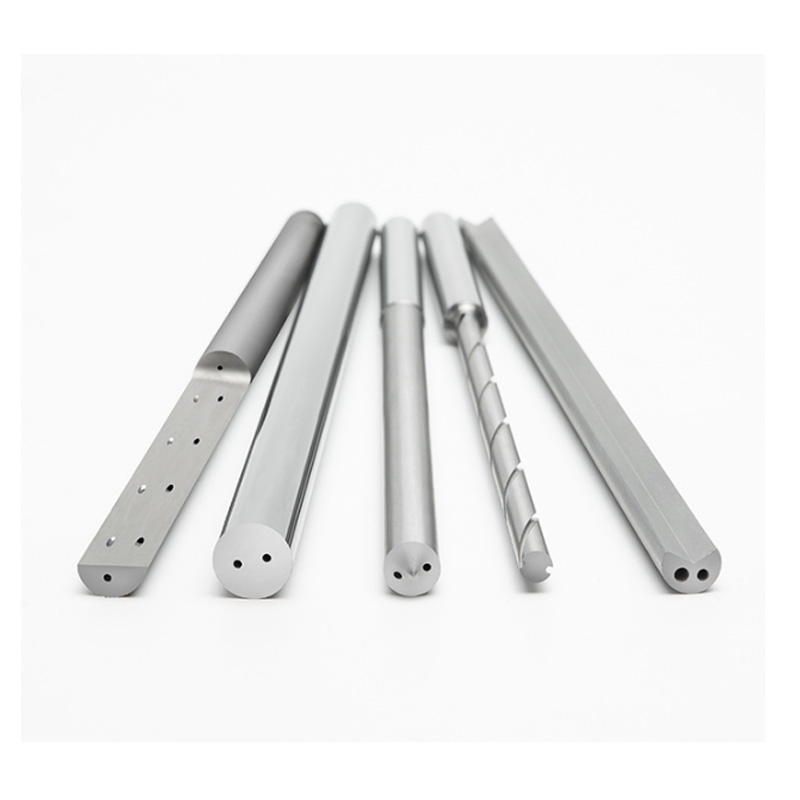

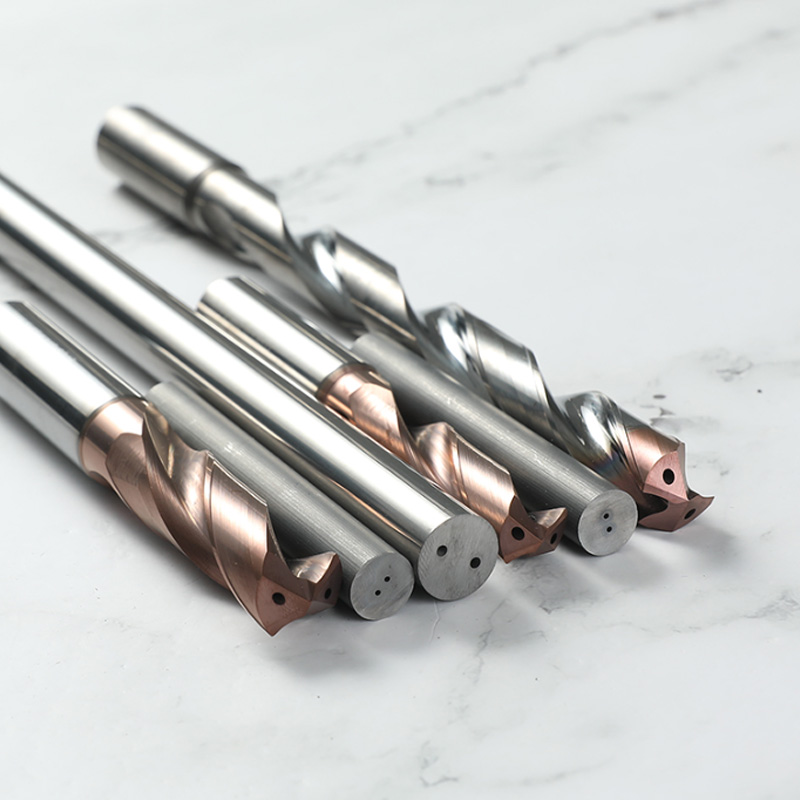

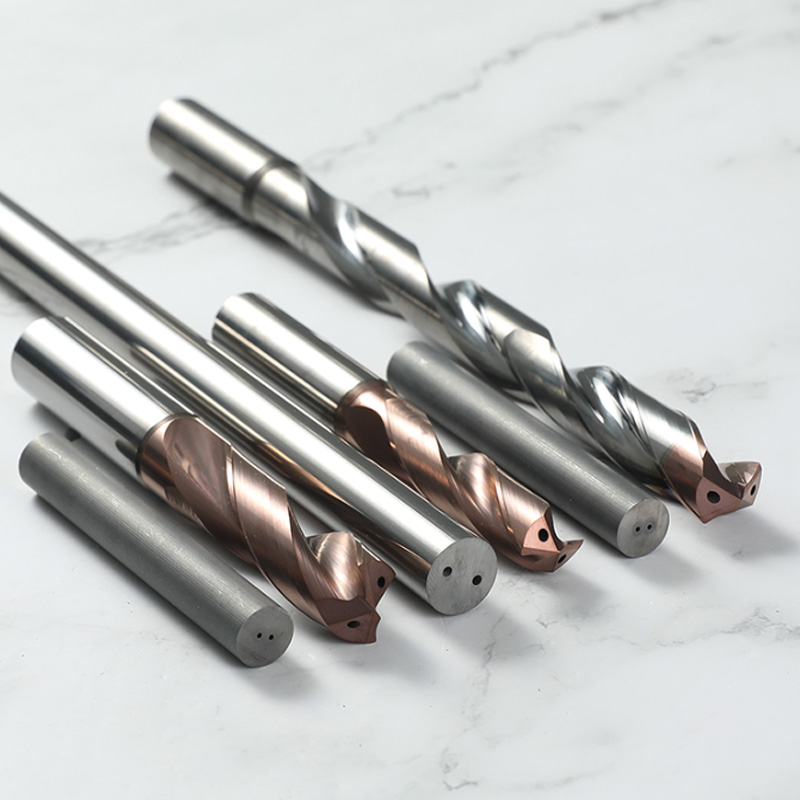

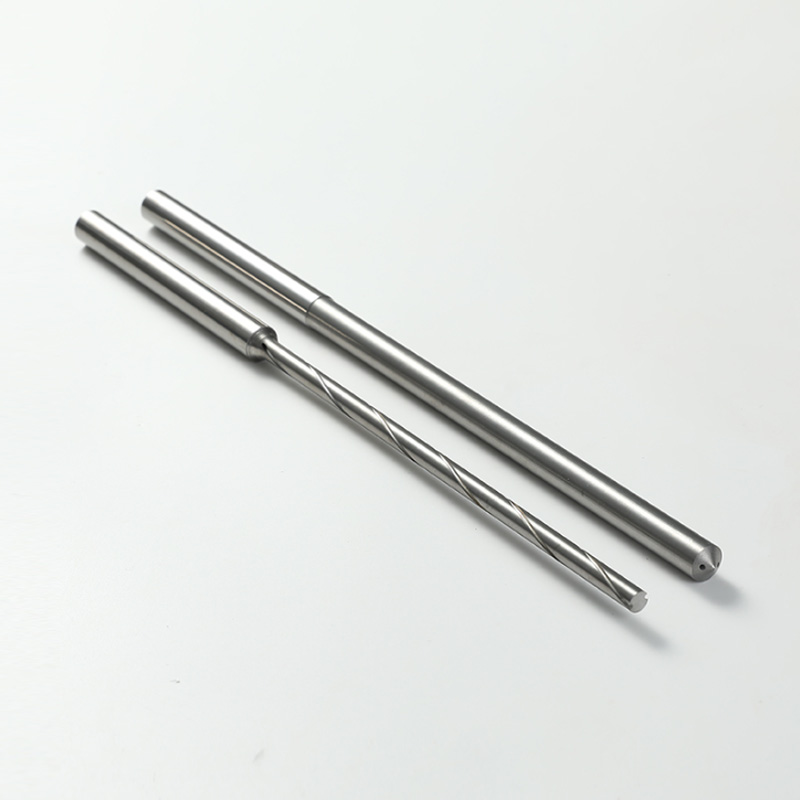

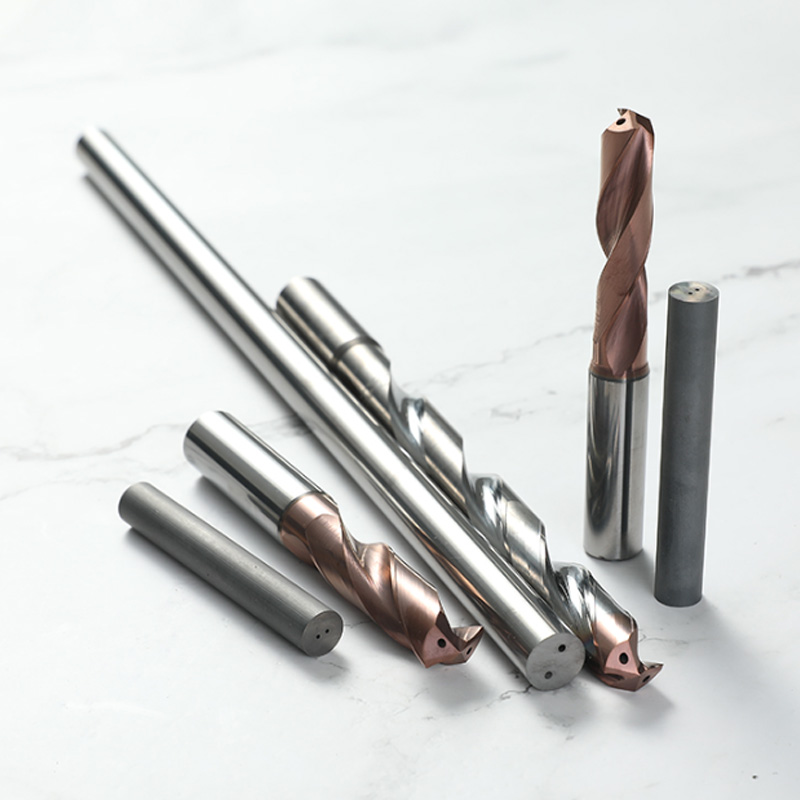

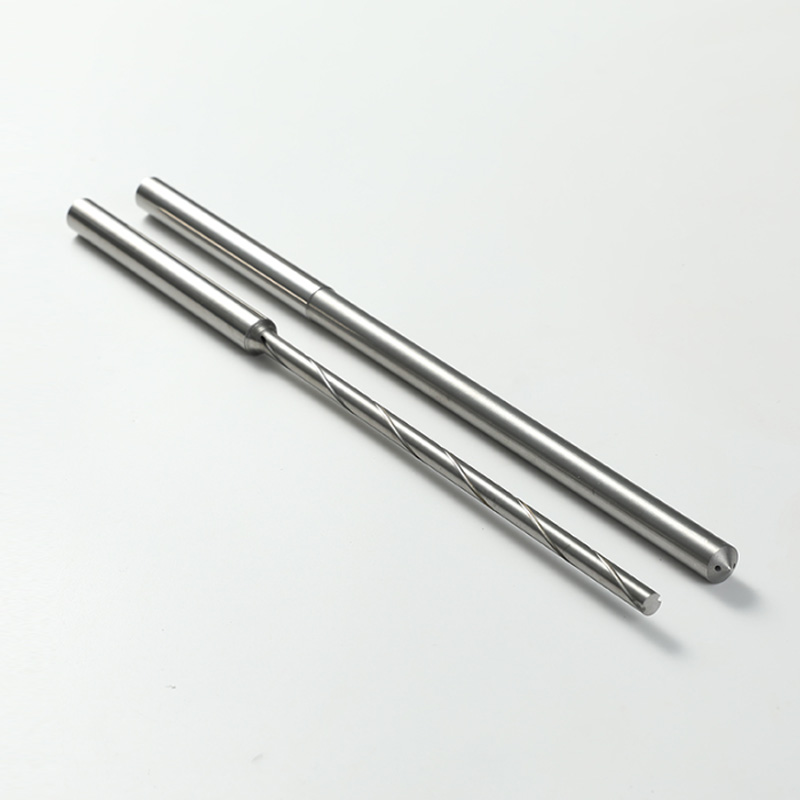

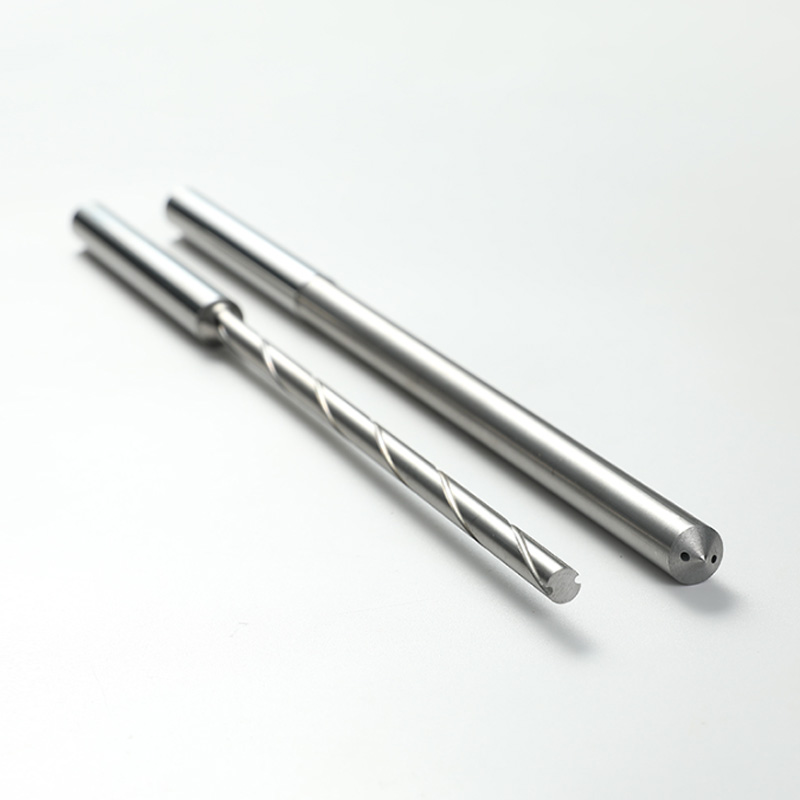

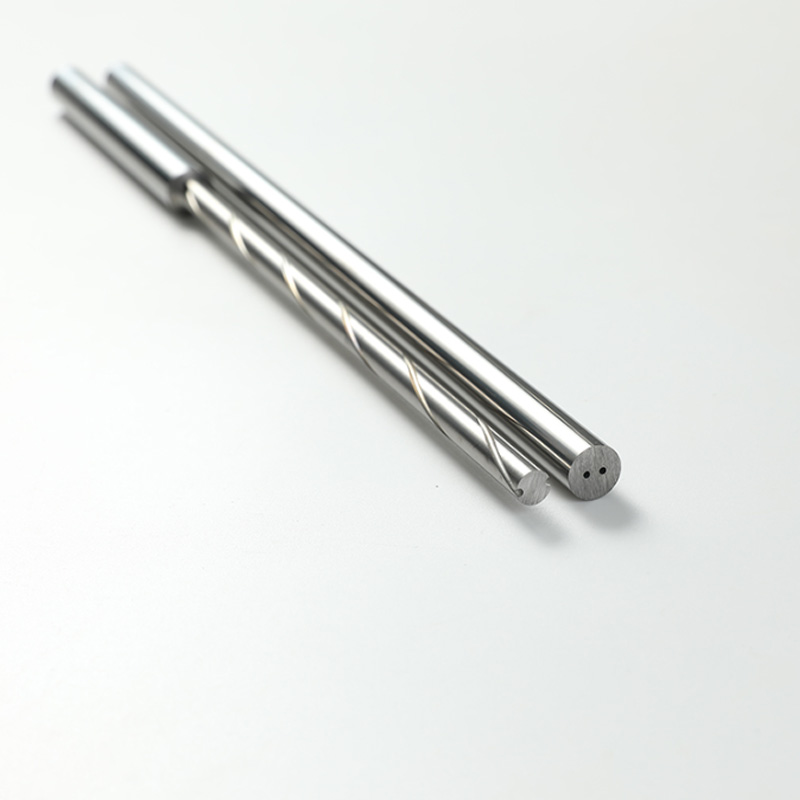

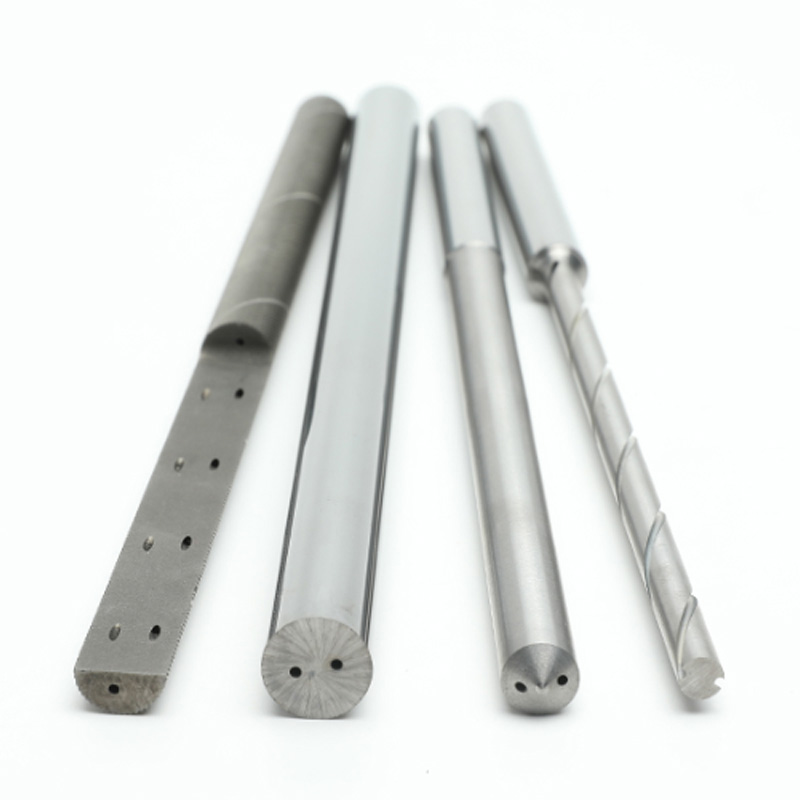

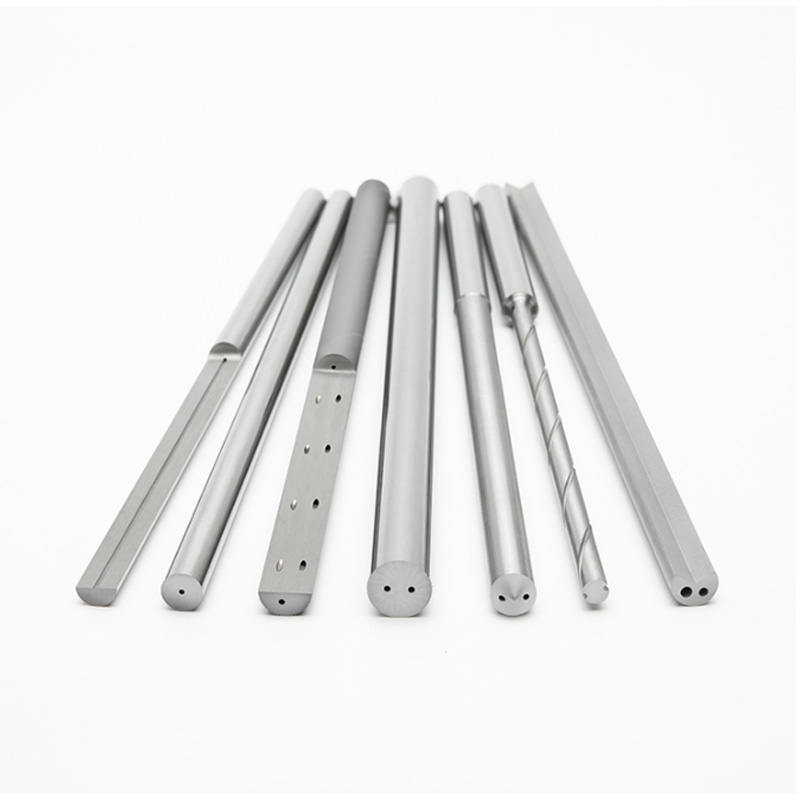

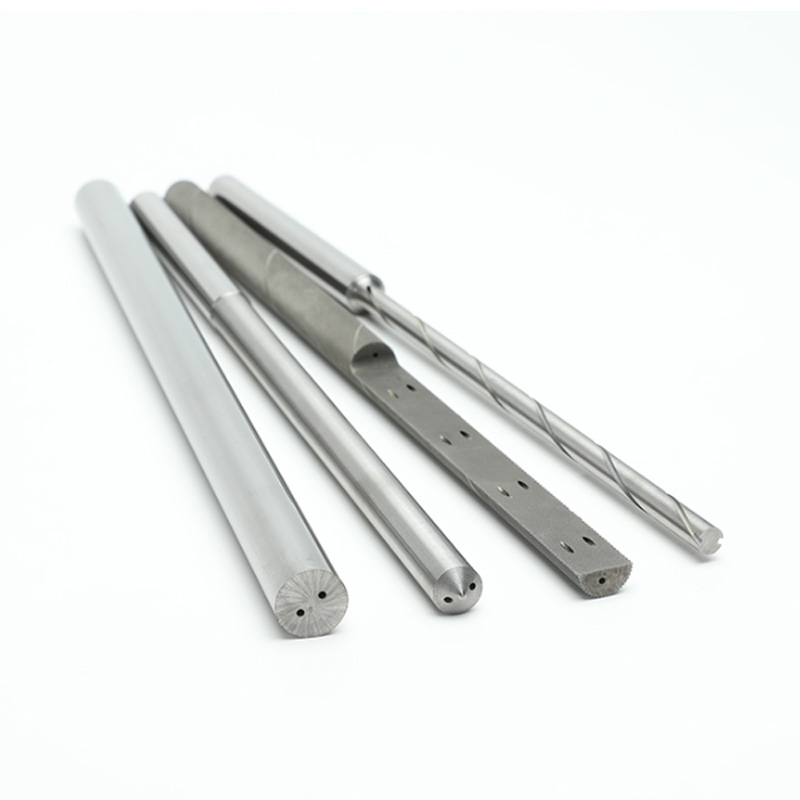

Carbide 30 degree spiral hole rod with high hardness, high strength, high wear resistance and other characteristics, mainly through metal powder injection molding production, can be used to make a variety of drills, high-speed milling tools and tools.
Physical Properties
| φD Outer diameter | φd Inner hole | D1 Bolt Circle | Hole Deviation |
Pitch | Length (0,+5) |
|||||
| Unground | To1. | Ground | dia. | to1. | Space | tol. | Pitch | to1. | ||
| lower/upper | h6/h5 | lower/upper | lower/upper | lower/upper | ||||||
| 6 | +0.7/+1.1 | 6.0 | 0.70 | ±0.10 | 2.60 | -0.4/+0 | 0.15 | 32.65 | -0.65/+0.67 | 330 |
| 8 | +0.8/+1.2 | 8.0 | 1.00 | ±0.15 | 4.00 | -0.4/+0 | 0.15 | 43.53 | -0.86/+0.89 | 330 |
| 10 | +0.8/+1.2 | 10.0 | 1.40 | ±0.15 | 4.80 | -0.6/+0 | 0.20 | 54.41 | -1.08/+1.11 | 330 |
| 12 | +0.9/+1.3 | 12.0 | 1.40 | ±0.15 | 6.25 | -0.8/+0 | 0.30 | 65.30 | -1.30/+1.34 | 330 |
| 14 | +0.9/+1.3 | 14.0 | 1.75 | ±0.20 | 7.10 | -0.8/+0 | 0.40 | 76.18 | -1.51/+1.56 | 330 |
| 15 | +0.9/+1.3 | 15.0 | 1.75 | ±0.20 | 7.70 | -0.8/+0 | 0.40 | 81.62 | -1.62/+1.67 | 330 |
| 16 | +1.0/+1.4 | 16.0 | 1.75 | ±0.20 | 8.30 | -0.8/+0 | 0.40 | 87.06 | -1.73/+1.78 | 330 |
| 18 | +1.0/+1.4 | 18.0 | 2.00 | ±0.25 | 9.55 | -0.8/+0 | 0.50 | 97.95 | -1.94/+2.00 | 330 |
| 20 | +1.0/+1.4 | 20.0 | 2.00 | ±0.25 | 10.40 | -1.0/+0 | 0.50 | 108.83 | -2.16/+2.23 | 330 |
| 22 | +1.0/+1.5 | 22.0 | 2.00 | ±0.25 | 11.60 | -1.0/+0 | 0.50 | 119.71 | -2.38/+2.45 | 330 |
| 25 | +1.1/+1.6 | 25.0 | 2.00 | ±0.25 | 13.30 | -1.0/+0 | 0.50 | 136.03 | -2.70/+2.78 | 330 |
Ingredient Content
Product parameters
| Classification | Grade | Sept. Price Sept. Price (kg/USD ) |
Sept. Price Sept. Price (USD/kg) |
Grain Size (um) |
Cobalt Content (Co%) |
Hardness (HRA) |
Hardness (HV30) |
Density (g/cm3 ) |
TRS (N/mm2) |
Application Recommended |
| Ultrafine | HU12U | 362 | 49.29 | 0.4 | 6 | 93.8 | 1900 | 14.8 | 3900 | Applicated to the high-hardness material processing including PCB drills, milling cutters, and gravers. |
| HU18U | 387 | 52.69 | 0.4 | 9 | 93 | 1850 | 14.5 | 3900 | Applicated for processing the hardness and difficult-to- machine materials, stainless machining, and micro cutter. |
|
| HU24U | 392 | 53.37 | 0.4 | 12 | 92.6 | 1760 | 14.12 | 4200 | Special carbide material of high-speed milling applied for alloy steel (HRC50-60), and stainless steel. Non-ferrous metal. Titanium alloy, high-temperature alloy, etc. |
|
| HU20X | 375 | 51.06 | 0.6 | 10 | 92.2 | 1730 | 14.43 | 3800 | For general use of high-speed milling and drilling, applicated for alloy steel, stainless steel, cast iron, non-ferrous metal, high-temperature alloy etc. |
|
| Submicron | HU20 | 372 | 50.65 | 0.7 | 10 | 91.9 | 1600 | 14.45 | 3800 | For general use in milling and drilling, it is applied to alloy steel. Stainless steel, non-ferrous metal, high-temperature alloy, etc. |
| HU20E | 362 | 49.29 | 0.7 | 10 | 91.8 | 1600 | 14.45 | 3700 | For general use of economic milling and drilling, applicated for alloy steel, stainless steel, non-ferrous metal, high temperature alloy etc. |
|
| HU12 | 361 | 49.15 | 1 | 6 | 92.5 | 1740 | 14.85 | 3000 | The best material for diamond coating, suitable for fiber reinforced material (carbon fiber and glass fiber)、 composite material、 high-silicon aluminum alloy and graphite products. |
|
| HF30F | 329 | 44.79 | 0.8 | 10 | 91.8 | 1600 | 14.3 | 3500 | The economic grade for milling, applied for alloy steel, non-- ferrous metal etc. |
