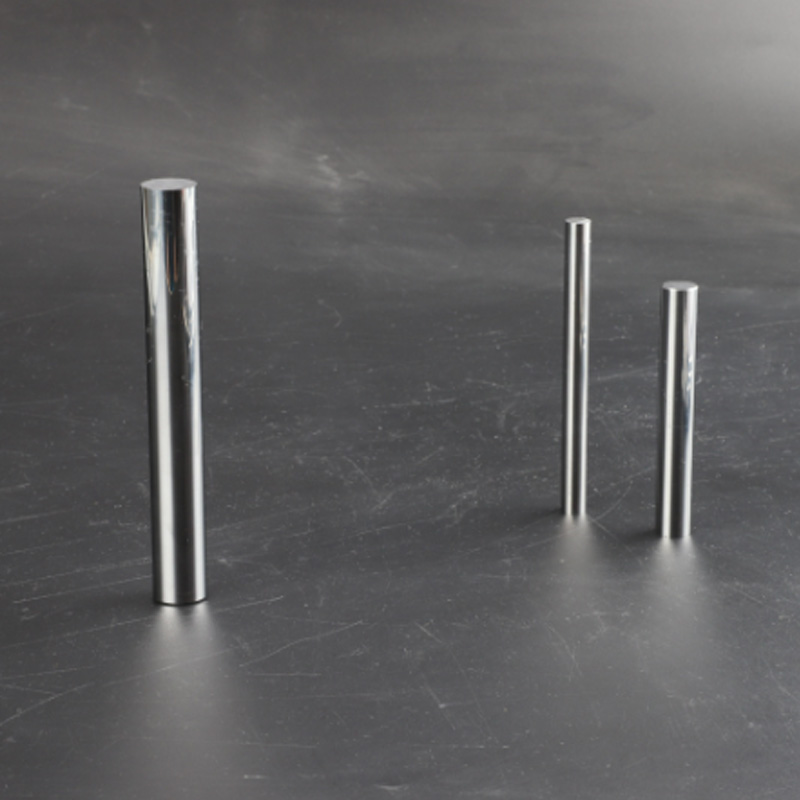

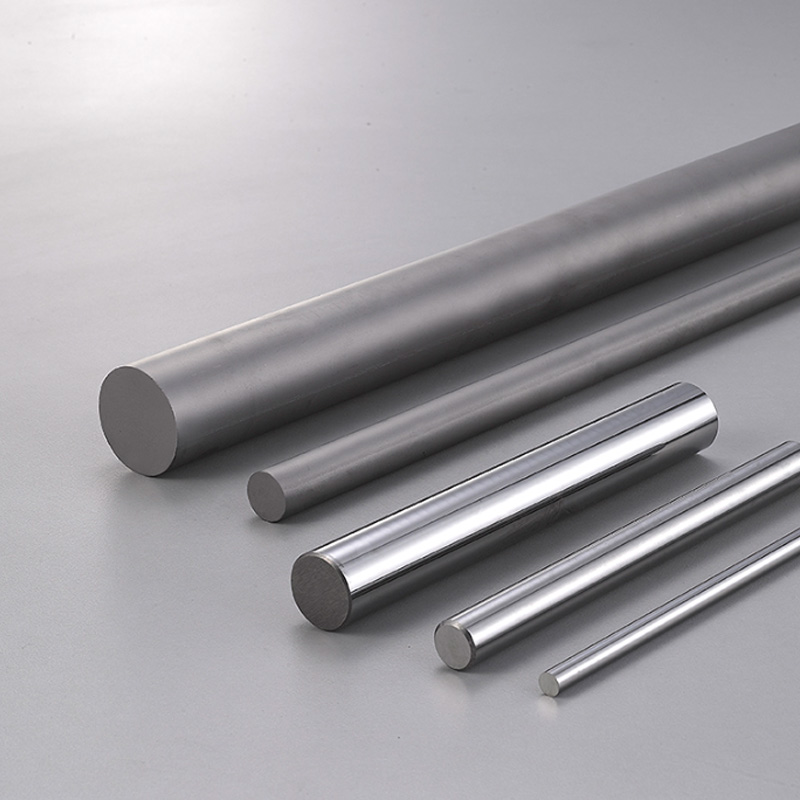

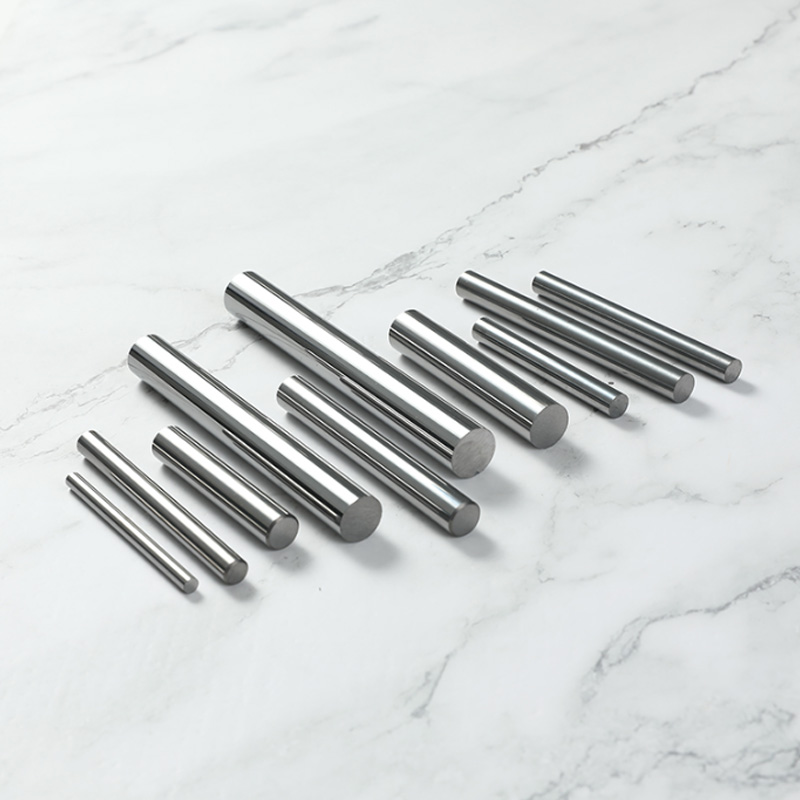

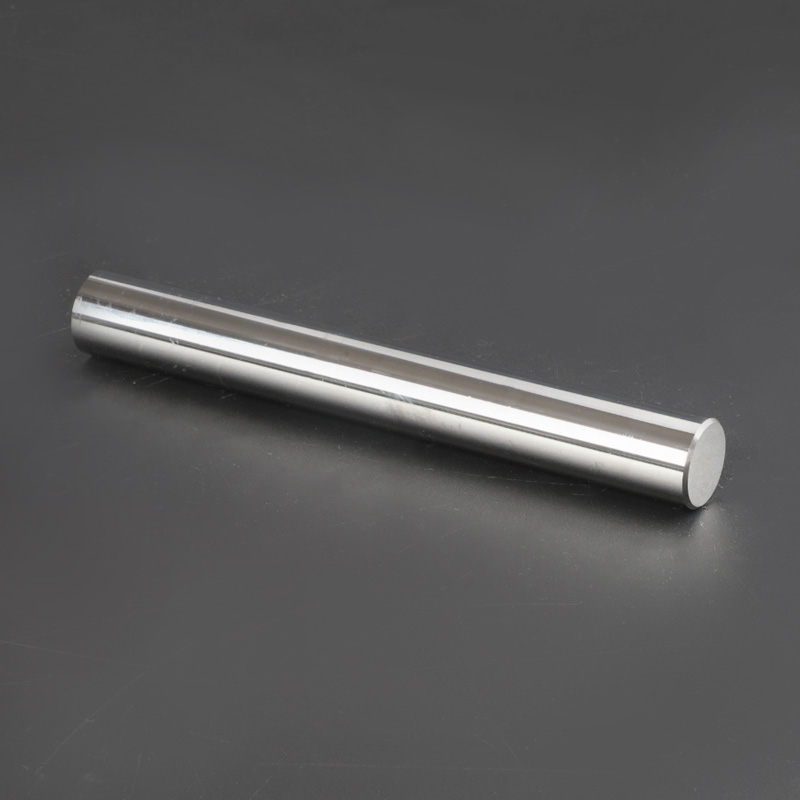

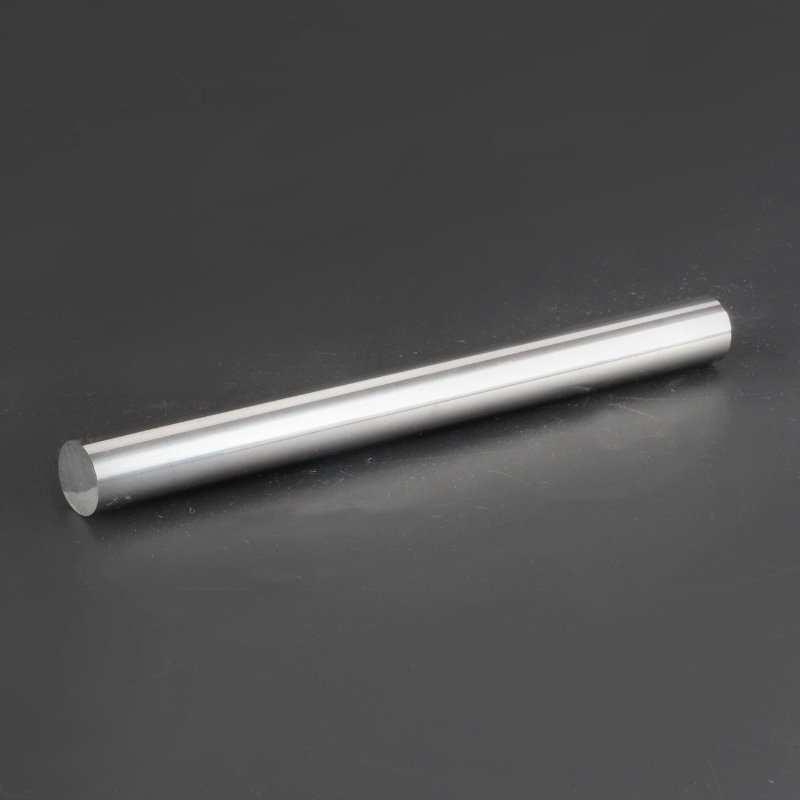

Carbide Solid Rod

Inquiry
PREV：Carbide Single Straight Hole RodNEXT：No next article
Product introduction

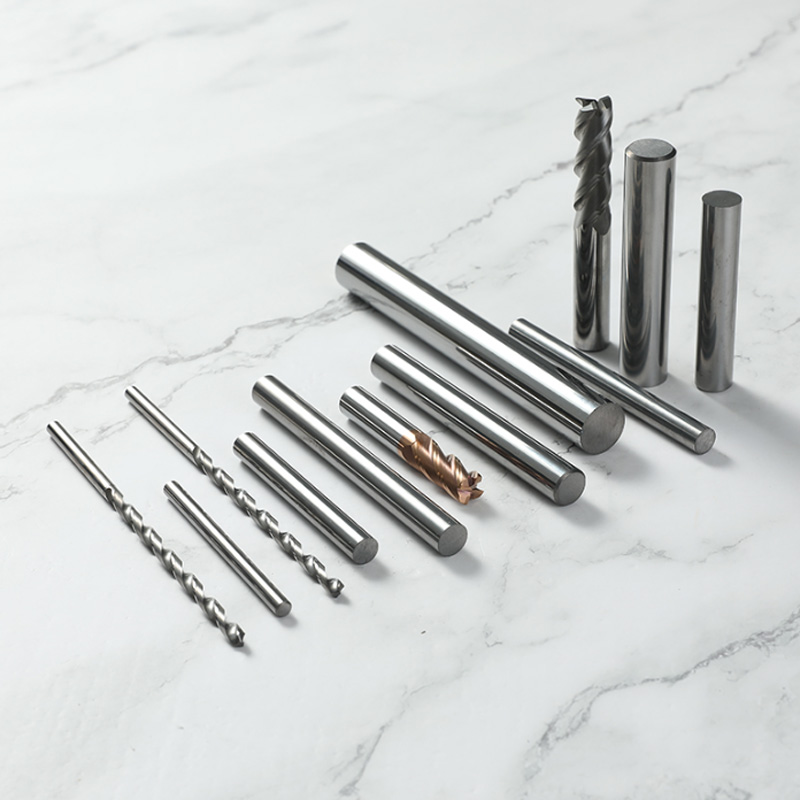

Hard alloy rods are cylindrical alloy materials made through powder metallurgy technology, which have stable mechanical properties, easy welding, high wear resistance, and high impact resistance. According to the needs of tool use, there are solid round rods for external cooling tools, as well as single and double straight holes, spiral holes, etc. for internal cooling tools. Widely used as tool materials, such as milling cutters, drills, reamers, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fibers, graphite, glass, stone, and ordinary steel. It can also be used for cutting difficult to machine materials such as heat-resistant steel, stainless steel, high manganese steel, and tool steel.

Physical Properties
фD Unground tol. Ground tol. Length
(0,+0.197)
1/8 +0.0118/+0.0177 h6/h5 13
3/16 +0.0118/+0.0196 h6/h5 13
1/4 +0.0118/+0.0236 h6/h5 13
5/16 +0.0118/+0.0236 h6/h5 13
3/8 +0.0118/+0.0236 h6/h5 13
1/2 +0.0118/+0.0275 h6/h5 13
5/8 +0.0118/+0.0275 h6/h5 13
3/4 +0.0118/+0.0314 h6/h5 13
1 +0.0118/+0.0314 h6/h5 13
1-1/4 +0.0118/+0.0314 h6/h5 13
1-1/2 +0.0118/+0.0314 h6/h5 13
Ingredient Content
фD Unground tol. Ground tol. Ground tol. H5 tolerance
Lower limit/Upper limit		 Length
(0,+5)
h6/h5 h6/h5
1.3 +0/+0.15 1.0 +0/-0.006 +0/-0.004 310/330
2.3 +0/+0.15 2.0 +0/-0.006 +0/-0.004 310/330
3.3 +0/+0.15 3.0 +0/-0.006 +0/-0.004 310/330
3.8 +0/+0.20 3.5 +0/-0.008 +0/-0.005 310/330
4.3 +0/+0.20 4.0 +0/-0.008 +0/-0.005 310/330
4.8 +0/+0.20 4.5 +0/-0.008 +0/-0.005 310/330
5.3 +0/+0.20 5.0 +0/-0.008 +0/-0.005 310/330
5.8 +0/+0.20 5.5 +0/-0.008 +0/-0.005 310/330
6.3 +0/+0.20 6.0 +0/-0.008 +0/-0.005 310/330
6.8 +0/+0.30 6.5 +0/-0.009 +0/-0.006 310/330
7.3 +0/+0.30 7.0 +0/-0.009 +0/-0.006 310/330
7.8 +0/+0.30 7.5 +0/-0.009 +0/-0.006 310/330
8.3 +0/+0.30 8.0 +0/-0.009 +0/-0.006 310/330
8.8 +0/+0.30 8.5 +0/-0.009 +0/-0.006 310/330
9.3 +0/+0.30 9.0 +0/-0.009 +0/-0.006 310/330
9.8 +0/+0.30 9.5 +0/-0.009 +0/-0.006 310/330
10.3 +0/+0.30 10.0 +0/-0.009 +0/-0.006 310/330
10.8 +0/+0.30 10.5 +0/-0.011 +0/-0.008 310/330
11.3 +0/+0.30 11.0 +0/-0.011 +0/-0.008 310/330
11.8 +0/+0.30 11.5 +0/-0.011 +0/-0.008 310/330
12.3 +0/+0.30 12.0 +0/-0.011 +0/-0.008 310/330
12.8 +0/+0.40 12.5 +0/-0.011 +0/-0.008 310/330
13.3 +0/+0.40 13.0 +0/-0.011 +0/-0.008 310/330
13.8 +0/+0.40 13.5 +0/-0.011 +0/-0.008 310/330
14.3 +0/+0.40 14.0 +0/-0.011 +0/-0.008 310/330
14.8 +0/+0.40 14.5 +0/-0.011 +0/-0.008 310/330
15.3 +0/+0.40 15.0 +0/-0.011 +0/-0.008 310/330
15.8 +0/+0.40 15.5 +0/-0.011 +0/-0.008 310/330
16.3 +0/+0.50 16.0 +0/-0.011 +0/-0.008 310/330
16.8 +0/+0.50 16.5 +0/-0.011 +0/-0.008 310/330
17.3 +0/+0.50 17.0 +0/-0.011 +0/-0.008 310/330
17.8 +0/+0.50 17.5 +0/-0.011 +0/-0.008 310/330
18.3 +0/+0.50 18.0 +0/-0.011 +0/-0.008 310/330
18.8 +0/+0.50 18.5 +0/-0.013 +0/-0.009 310/330
19.3 +0/+0.50 19.0 +0/-0.013 +0/-0.009 310/330
20.3 +0/+0.50 20.0 +0/-0.013 +0/-0.009 310/330
21.3 +0/+0.50 21.0 +0/-0.013 +0/-0.009 310/330
22.3 +0/+0.50 22.0 +0/-0.013 +0/-0.009 310/330
23.3 +0/+0.50 23.0 +0/-0.013 +0/-0.009 310/330
24.3 +0/+0.50 24.0 +0/-0.013 +0/-0.009 310/330
25.3 +0/+0.50 25.0 +0/-0.013 +0/-0.009 310/330
26.3 +0/+0.50 26.0 +0/-0.013 +0/-0.009 310/330
27.3 +0/+0.50 27.0 +0/-0.013 +0/-0.009 310/330
28.3 +0/+0.50 28.0 +0/-0.013 +0/-0.009 310/330
29.3 +0/+0.50 29.0 +0/-0.013 +0/-0.009 310/330
30.3 +0/+0.50 30.0 +0/-0.013 +0/-0.009 310/330
31.3 +0/+0.50 31.0 +0/-0.016 +0/-0.011 310/330
32.3 +0/+0.50 32.0 +0/-0.016 +0/-0.011 310/330
33.3 +0/+0.50 33.0 +0/-0.016 +0/-0.011 310/330
34.3 +0/+0.50 34.0 +0/-0.016 +0/-0.011 310/330
35.3 +0/+0.50 35.0 +0/-0.016 +0/-0.011 310/330
36.3 +0/+0.50 36.0 +0/-0.016 +0/-0.011 310/330
37.3 +0/+0.50 37.0 +0/-0.016 +0/-0.011 310/330
38.3 +0/+0.50 38.0 +0/-0.016 +0/-0.011 310/330
39.3 +0/+0.50 39.0 +0/-0.016 +0/-0.011 310/330
40.3 +0/+0.50 40.0 +0/-0.016 +0/-0.011 310/330
45.3 +0.20/+0.70 45.0 310/330
50.3 +0.20/+0.70 50.0 310/330
Product parameters
Classification Grade Sept. Price Sept. Price
(kg/USD )		 Sept. Price Sept. Price
(USD/kg)		 Grain Size
(um)		 Cobalt Content
(Co%)		 Hardness
(HRA)		 Hardness
(HV30)		 Density
(g/cm3 )		 TRS
(N/mm2)		 Application Recommended
Ultrafine HU12U 362 49.29 0.4 6 93.8 1900 14.8 3900 Applicated to the high-hardness material processing
including PCB drills, milling cutters, and gravers.
HU18U 387 52.69 0.4 9 93 1850 14.5 3900 Applicated for processing the hardness and difficult-to-
machine materials, stainless machining, and micro cutter.
HU24U 392 53.37 0.4 12 92.6 1760 14.12 4200 Special carbide material of high-speed milling applied for
alloy steel (HRC50-60), and stainless steel. Non-ferrous metal.
Titanium alloy, high-temperature alloy, etc.
HU20X 375 51.06 0.6 10 92.2 1730 14.43 3800 For general use of high-speed milling and drilling, applicated
for alloy steel, stainless steel, cast iron, non-ferrous metal,
high-temperature alloy etc.
Submicron HU20 372 50.65 0.7 10 91.9 1600 14.45 3800 For general use of milling and drilling, applied for alloy
steel. Stainless steel, non-ferrous metal, high-temperature
alloy, etc.
HU20E 362 49.29 0.7 10 91.8 1600 14.45 3700 For general use of economic milling and drilling, applicated
for alloy steel, stainless steel, non-ferrous metal, high
temperature alloy etc.
HU12 361 49.15 1 6 92.5 1740 14.85 3000 The best material for diamond coating, suitable for fiber
reinforced material (carbon fiber and glass fiber)、
composite material、 high-silicon aluminum alloy and
graphite products.
HF30F 329 44.79 0.8 10 91.8 1600 14.3 3500 The economic grade for milling applied for alloy steel,  non-
ferrous metal etc.
