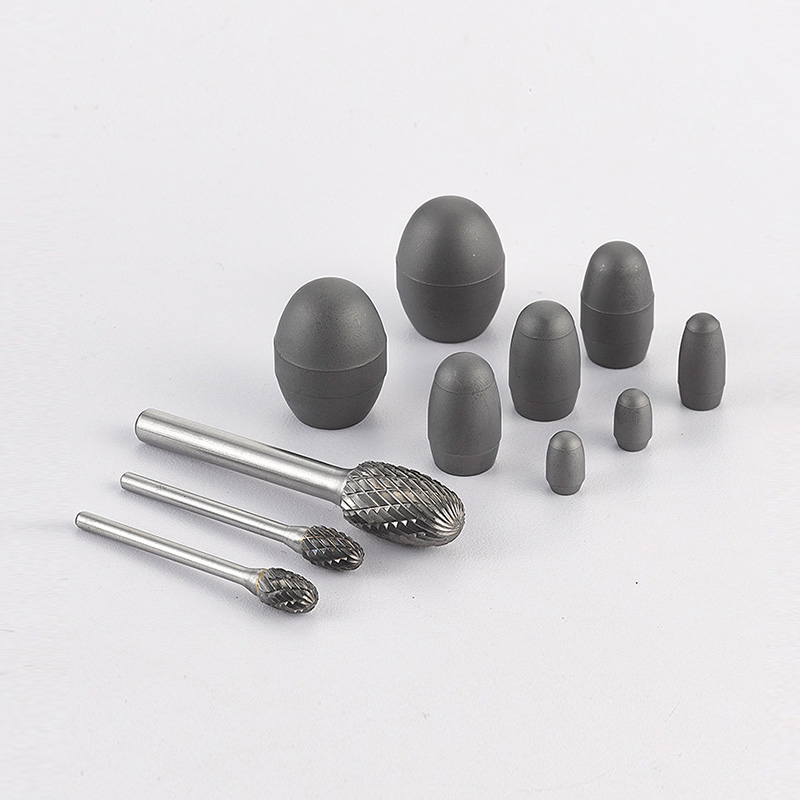

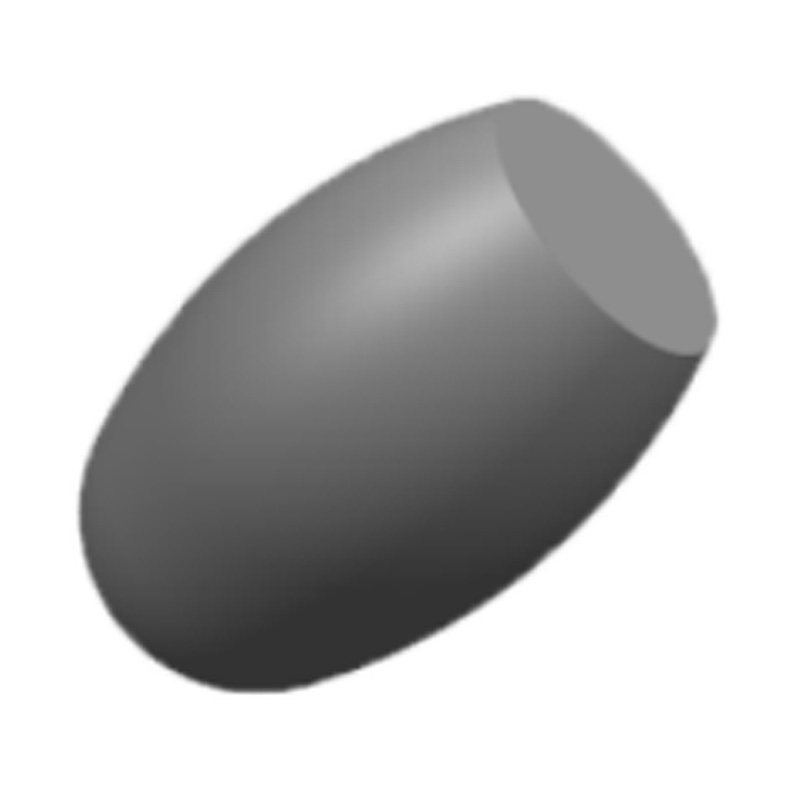

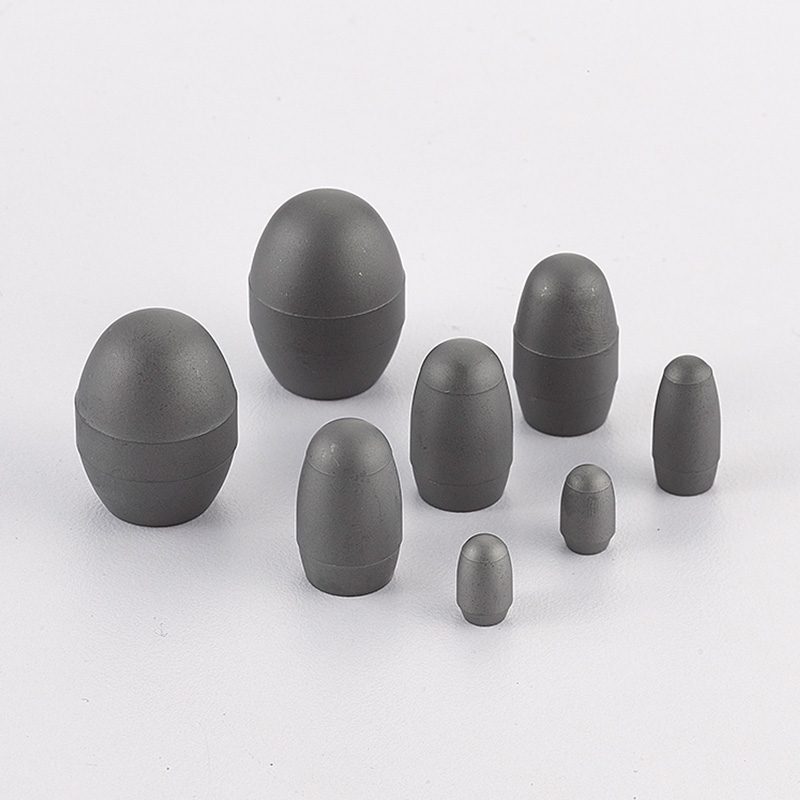

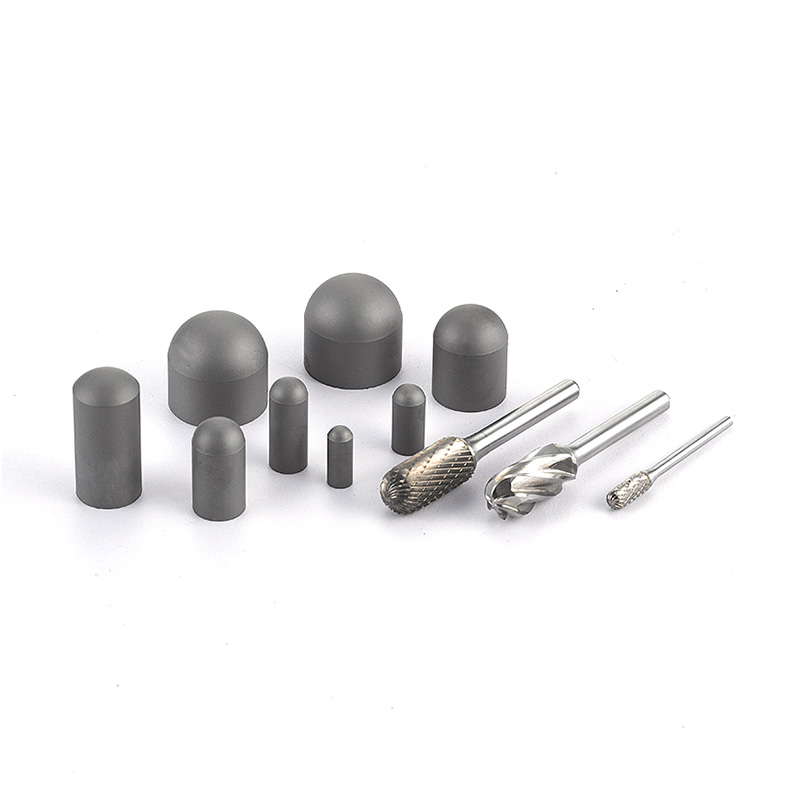

E-Type Rotary Burr Blank
Inquiry
Product introduction

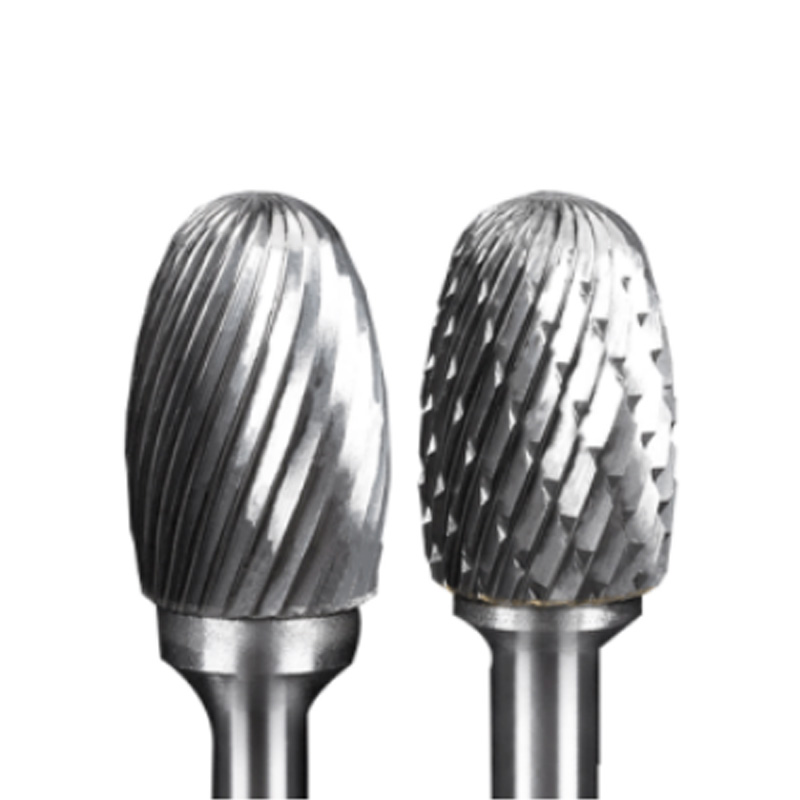

Hard alloy rotary file, also known as tungsten steel grinding head, also known as hard alloy high-speed mixed milling cutter, hard alloy mold milling cutter, etc. Hard alloy rotary files can cut and process various metal and non-metallic materials below HRC70 at will, with high processing efficiency and good surface quality. They are rotary cutting tools mainly used for precision machining, polishing, chamfering, etc. They are used in industries such as machinery, automotive, shipbuilding, chemical, dental and nail art.
Physical Properties
| MM | |||||
| Spec. | Basic dimension | Ref.dimension | |||
| φD | φd | L | R | R1 | |
| E0610 | 6.5 | 5 | 10.5 | 10.3 | 2.8 |
| E0813 | 8.5 | 6.8 | 13.5 | 17.3 | 3.4 |
| E1016 | 10.5 | 8.2 | 16.5 | 18.6 | 4 |
| E1220 | 12.5 | 10.7 | 20.5 | 41 | 5.2 |
| E1322 | 13.3 | 11.2 | 22.5 | 35.8 | 5.4 |
| E1625 | 16.5 | 12.8 | 25.5 | 30 | 6.5 |
| Inch | |||||||
| Spec. | φD | L | φd | R1 | R | ||
| Model | Dimension | Model | Dimension | ||||
| BSE-51 | 1/4 | 0.265 | 3/8 | 0.375 | 0.216 | 0.427 | 0.099 |
| BSE-2 | 1/3 | 0.339 | 3/5 | 0.585 | 0.26 | 0.965 | 0.153 |
| BSE-3 | 3/8 | 0.390 | 5/8 | 0.625 | 0.311 | 0.88 | 0.161 |
| BSE-5 | 1/2 | 0.515 | 7/8 | 0.875 | 0.406 | 1.255 | 0.208 |
| BSE-6 | 5/8 | 0.640 | 1 | 1.000 | 0.507 | 1.255 | 0.255 |
| BSE-7 | 3/4 | 0.767 | 1 | 1.000 | 0.495 | 0.802 | 0.318 |
Ingredient Content
Product parameters
| Classification | Grade | January prices | January prices | Grain size (um) |
Cobalt Content (Co%) |
Hardness (HRA) |
Density (g/cm3) |
TRS (N/mm2) |
Application Recommended |
| Ultrafine | YG6AX | ￥367.00 | $58.25 | 0.6 | 6 | 93.2 | 14.8 | 2800 | Applicable to finishing and semi-finishing all kinds of cast iron and metal, it's an excellent material to produce solid carbide hole machining tools. |
| Submicron | HU20E | ￥362.00 | $57.46 | 0.7 | 10 | 91.8 | 14.45 | 3700 | Good wear resistance and high toughness, applicable to high-performance industrial burs and dental burs. |
| YG6X | ￥361.00 | $57.30 | 0.8 | 6 | 92 | 14.89 | 3000 | Applicable to processing alloy chilled cast iron and heat-resistant alloy steel. also applicable to processing common cast iron and non-metallic materials | |
| Medium | YG7 | ￥352.00 | $55.87 | 1.6 | 7 | 90.1 | 14.81 | 2800 | Applicable to rough machining of cast iron, non-ferrous metals, and non-ferrous alloy |
| YG7A | ￥361.00 | $57.3 | 1.2 | 7 | 91 | 14.85 | 2500 | Applicable to finishing and semi-finishing of cast iron, non-ferrous metals, and non-ferrous alloys. | |
| HF7Z | ￥339.00 | $53.81 | 1.6 | 7 | 90.5 | 14.83 | 2500 | Applicable thorough machining of cast iron, non-ferrous metals, and non-ferrous alloy. The economic grade of YG7. | |
| HF20Z | ￥339.00 | $53.81 | 1.6 | 7.5 | 90 | 14.7 | 2500 | Applicable to rough machining of cast iron. non-ferrous metals and non-ferrous alloy |
